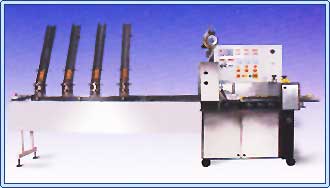

This
Model is suitable to pack products in 1/2/3/4/5
piles of biscuits. The same Model can also
be used for paking tray type or for Pre-wrapped
Products. Lug carries required number of
products from the magazine and arrives to
the forming box. The wrapper is wrapped
around the forming box. Fin seal at bottem
is completed by three pair of rollers out
of which one pair is for pre heating, second
for heating and third for propelling purpose,
which controls the wrapper around the periphery
of the product. The crimping jaws makes
cross sealing at two ends and seperation
as required, such packets are delivered
to the out feed conveyor.
MECHANICAL
SPEED DEPENDING UPON PRODUCT
(PACKETS PER MINUTE)
180
PACKETS
PER MIN.
WRAPPING
MATERIAL :
Direct Heat Sealable BOPP, Laminate of BOPP with MetaliZed
Heat
Sealable BOPP/CPP/Pearlised BOPP, Laminate of Polyester
with Heat
Sealable BOPP/CPP/Poly, Heat Sealable Laminates Containing
Aluminium Foil.
