                               HORIZONTAL FLOW WRAP MACHINES

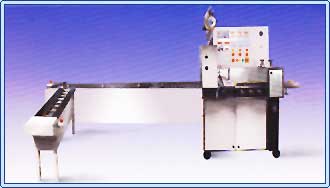

ON EDGE 'L' CONVEYOR FLOW WRAP MACHINE: (MODEL: abm/LC/60)
This Model is suitable to pack products like cream sandwiched biscuits in standing on edge position. This type of biscuit packing machine can also be used for packing biscuits which are difficult to stack by auto-feeding arrangements. Products are fed manually on 'L' conveyor which are transfered and loaded to main in feed conveyor and arrives to the forming box. The wrapper is wrapped around the forming box. Fin seal at bottem is completed by three pair of rollers out of which one pair is for pre heating, second for heating and third for propelling purpose, which controls the wrapper around the periphery of the product. The crimping jaws makes cross sealing at two ends and seperation, such packets are delivered to the out feed conveyor.
TECHNICAL DATA:
top
DESCRIPTION abm/ LC/60
 PRODUCT WIDTH                                   MIN
                                                               MAX		 35 M.M.
65 M.M.
 PRODUCT HEIGHT                                  MIN
                                                               MAX		 35 M.M.
65 M.M.
 PRODUCT LENGTH                                  MIN
                                                               MAX		 60 M.M.
180 M.M.
 WRAPPER CUT OFF LENGTH                   MIN
                                                               MAX 		75 M.M.
350 M.M.
 MAXIMUM REEL WIDTH 280 M.M.
 MAXIMUM REEL DIAMETER 300 M.M.
 MAIN MOTOR 1.5 KW
 HEATING 3.0 KW
 MECHANICAL SPEED
 DEPENDING UPON PRODUCT
 (PACKETS PER MINUTE) 		60
PACKETS
PER MIN.
WRAPPING MATERIAL :
Direct Heat Sealable BOPP, Laminate of BOPP with MetaliZed Heat Sealable BOPP/CPP/Pearlised BOPP, Laminate of Polyester with Heat Sealable BOPP/CPP/Poly, Heat Sealable Laminates Containing Aluminium Foil.
top
Sailent Features:

   Automatic self contained unit.
   All components coming in contact with product are of stainless steel or Food Grade plastic.
   Ease of change over to differnt varieties of product in minimum time.
   A.C. motor with variable frequency Inverter Drive.
   Separate Temperature Controllers are provided for each pair of Heating rollers and jaws.
   Cut off Length adjustment by just rotating wheel with Display.
   Simple to operate and easy to maintain.
