                               HORIZONTAL FLOW WRAP MACHINES

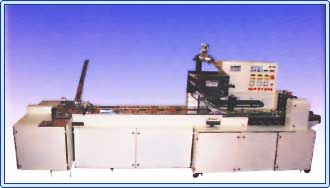

FAMILY PACK MACHINE: (MODEL: abm/FP/30)
This Model is designed to pack products standing on edge position in one or several rows as per required. With family pack type packing machine , you can pack biscuits in family type packing in 200 gms., 250 gms., 300 gms. From magazine, required stack length of product are precisely pushed and loaded to main conveyor and arrives to the forming box. The wrapper is wrapped around the forming box. Fin seal at bottem is completed by four pair of rollers out of which one pair is for pre heating, second for heating, third for propelling purpose, which controls the wrapper around the periphery of the product & fourth for easy transfer to the out feed conveyor. The crimping jaws makes cross sealing at two ends and seperation, such packets are delivered to the out feed conveyor.
TECHNICAL DATA:
top
DESCRIPTION abm/ FP/30
 PRODUCT WIDTH                                   MIN
                                                               MAX		 80 M.M.
150 M.M.
 PRODUCT HEIGHT                                  MIN
                                                               MAX		 35 M.M.
65 M.M.
 PRODUCT LENGTH                                  MIN
                                                               MAX		 80 M.M.
240 M.M.
 WRAPPER CUT OFF LENGTH                   MIN
                                                               MAX 		100 M.M.
400 M.M.
 MAXIMUM REEL WIDTH 380 M.M.
 MAXIMUM REEL DIAMETER 300 M.M.
 MAIN MOTOR 1.5 KW
 HEATING 3.0 KW
 MECHANICAL SPEED
 DEPENDING UPON PRODUCT
 (PACKETS PER MINUTE)
60
No. of Rows
PER Pkt.
WRAPPING MATERIAL :
Direct Heat Sealable BOPP, Laminate of BOPP with MetaliZed Heat Sealable BOPP/CPP/Pearlised BOPP, Laminate of Polyester with Heat Sealable BOPP/CPP/Poly, Heat Sealable Laminates Containing Aluminium Foil.
top
Sailent Features:

   Automatic self contained unit.
   All components coming in contact with product are of stainless steel or Food Grade plastic.
   Ease of change over to differnt varieties of product in minimum time.
   A.C. motor with variable frequency Inverter Drive.
   Separate Temperature Controllers are provided for each pair of Heating rollers and jaws.
   Cut off Length adjustment by just rotating wheel with Display.
   Simple to operate and easy to maintain.
